DNV2.7-1海工框架集装箱


产品描述

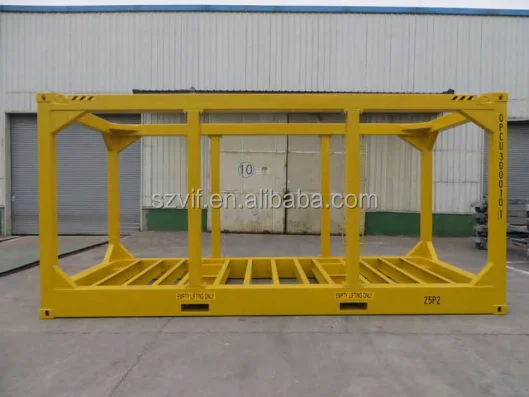

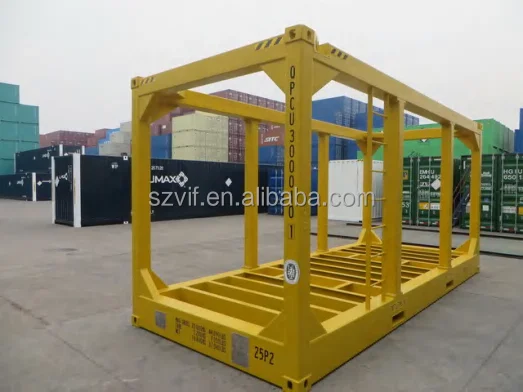

Dnv 2.7-1 Offshore frame Container
1. Designed to meet harsh offshore environments, our offshore containers are fully certified to DNV 2.7-1 / BSEN 12079 or ISO10855 and CSC plated. Approval by Main Classification Society, such as BV, DNV,LR.
2. The units are supplied with certified slings and shackles as standard.
3. Padeyes on the roof for lifting. The base has integrated forklift pockets for ease of yard loading and offloading.
4. Anti-slip treatment on floor after painting.
5. Weatherproof and all units are stackable.
6. Full-opened roof, rear door, and removable door-header, for large tools or equipment.
7. With ultrasonic and magnetic particle detection evaluation reports.
8. Standard Working life:Brand new containers with long working life ranging from 10 to 25 years.
Product Description

TYPE
20’H Offshore Frame
External
Weights
Length
Width
Width
Max Gross Weight
Tare Weight
Max Payload
6058 mm
2438 mm
896mm
20,000Kg
3,200 Kg
16,800 Kg
20’
8’
9’6”
44,092 Lbs
7,055Lbs
37,038 Lbs
Internal
Sling Angle
5812 mm
2130 mm
2492 mm
45°
19
6’11”
8’2”
Offshore frame,comply with DNV2.7-1 Standard.



FAQ
1: What kinds of offshore containers can you provide?
We designs such as closed offshore containers, open top offshore containers, half height containers cargo basket, cylinder bottle racks, refrigerated containers and workshop, tool stores are popular units to support each offshore life cycle stage.
We regularly offer bespoke designs or specific modifications as the most effective solutions for specialist applications.

2: Dose shipping company accept your containers? Any certifificate?
Sure, designed to meet harsh offshore environments, our offshore containers are fully certified to DNV 2.7-1 / BSEN 12079 or ISO 10855 and CSC plated. Approval by Main Classification Society, such as BV, DNV,LR.

3: What about the payment terms?
Usually we accept 30%~40%TT in advance, the balance before shipment.

4:Do you accept small quantity order?
Our min order is 1~2pcs for offshore container.

5:What about delivery date?
For customerized containers, usually 30~40 working days upon order confirmation.
Exact delivery date according to our production schedule.
